Electrostatic Precipitators – Dry, Wet

ELECTROSTATIC PRECIPITATORS

1000 – 3500000 M3/hr

Volume handled

Outlet Emission < 5mg/Nm3

Performance Guarantee

What is Electrostatic Precipitators ?

An electrostatic precipitator (ESP) is a particulate collection device that removes particles from a flowing gas (such as air) using the force of an induced electrostatic charge. The charged particles are attracted to and deposited on plates or other collection devices.

The collectors (and emitters) are shaken by suitable mechanisms to dislodge the accumulated dust , causing it to fall with the force of gravity to hoppers below. The dust is then removed by a conveyor system for disposal or recycling.

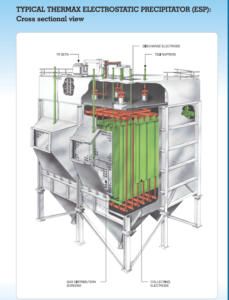

Anatomy of an Electrostatic Precipitator

  • Horizontal and Vertical Flow Precipitators
  • Dry type design for Gas volumes 5000 Am3/hr to 30, 00000 Am3/hr
  • Wet type design for maximum particulate removal
  • Hot gas designs for operation at temperatures above 450 Deg. C
  • Expertise of Top as well as bottom rapping
  • Diverse applications like corrosive gas, Over 100 types of dusts, tar etc
